Can I convert a picture or floor plan image to DXF?

Yes. Upload a JPG, PNG, JPEG, or BMP picture or floor plan image and convert it into an editable DXF file. Our AI analyzes the drawing and converts visible floor plan elements into standard DXF geometry for CAD workflows.

How accurate is image to DXF conversion?

Conversion accuracy depends on the quality and clarity of the source image. High-resolution floor plans with clear lines and minimal noise generally produce better results. The converter uses AI-assisted recognition and vector conversion to create clean DXF geometry from your drawing. You can also convert your floor plan to 3D for visualization.

Can I edit the DXF file after conversion?

Yes. DXF files can be opened and edited in CAD software that supports the format. The output uses standard DXF entities such as lines, polylines, and arcs, making the converted floor plan easier to modify and continue working with.

Is my uploaded floor plan data secure?

We process uploaded floor plan images securely and handle your data according to our privacy practices. Files are used for conversion and are not shared with third parties.

Floor Plan

See What You Can Create

Turn your floor plan into a CAD-ready DXF file.

Floor Plan Image

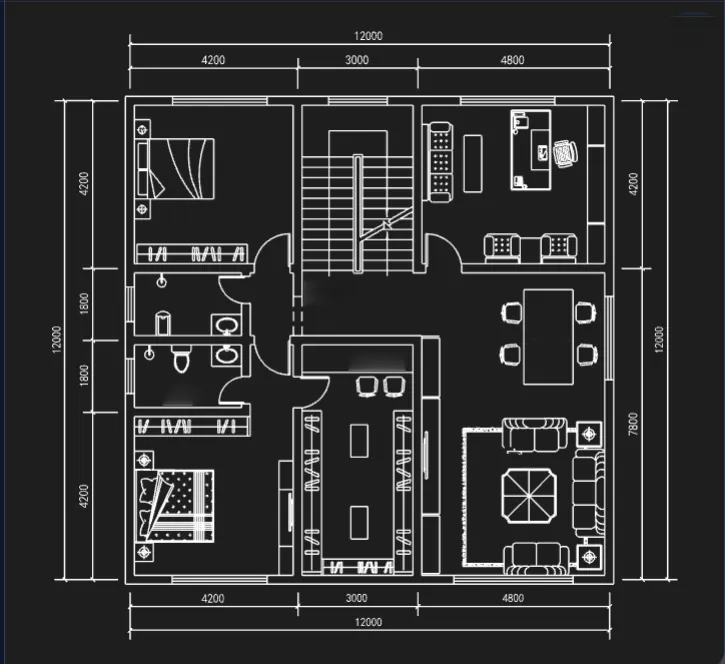

Editable DXF

Click to upload or drag floor plan hereSupports JPG, JPEG, PNG, BMP formats, max 15MB

Conversion Settings

Choose the options below, text recognition starts after image upload

Conversion Type

Do not recognize textSkip text recognition to speed up conversion and reduce clutter

Online DXF Converter Tool

DXF Converter: Convert Floor Plan Images to DXF

Convert JPG, PNG, or BMP floor plan images into editable DXF files online. AI analyzes walls, doors, windows, and room boundaries to create CAD-ready drawings faster.

JPG, PNG, BMP support

Preview before converting

CAD-ready DXF output

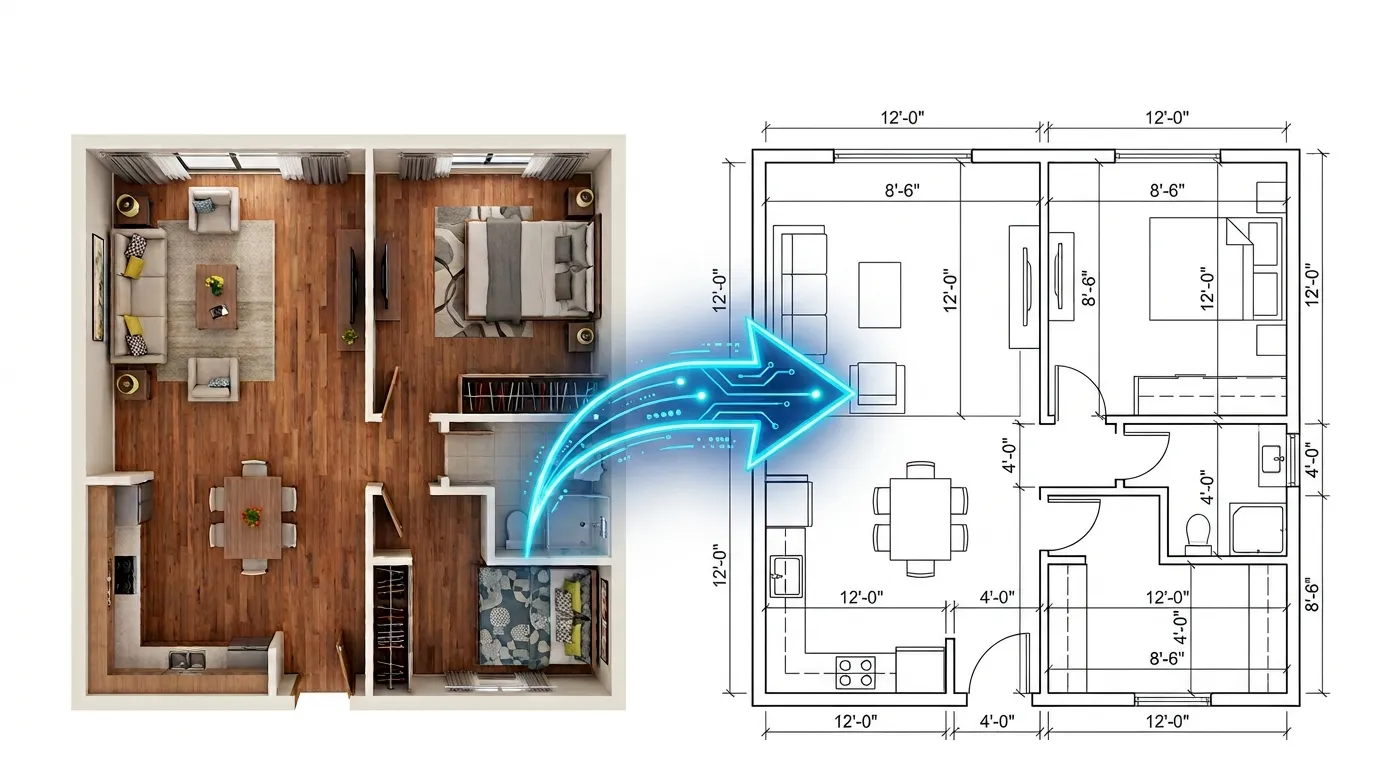

Online DXF converter showing a floor plan image and CAD-ready DXF drawing

Built for Accurate Floor Plan Conversion

Turn floor plan images into clean, editable DXF geometry with AI-assisted recognition and precise vector conversion.

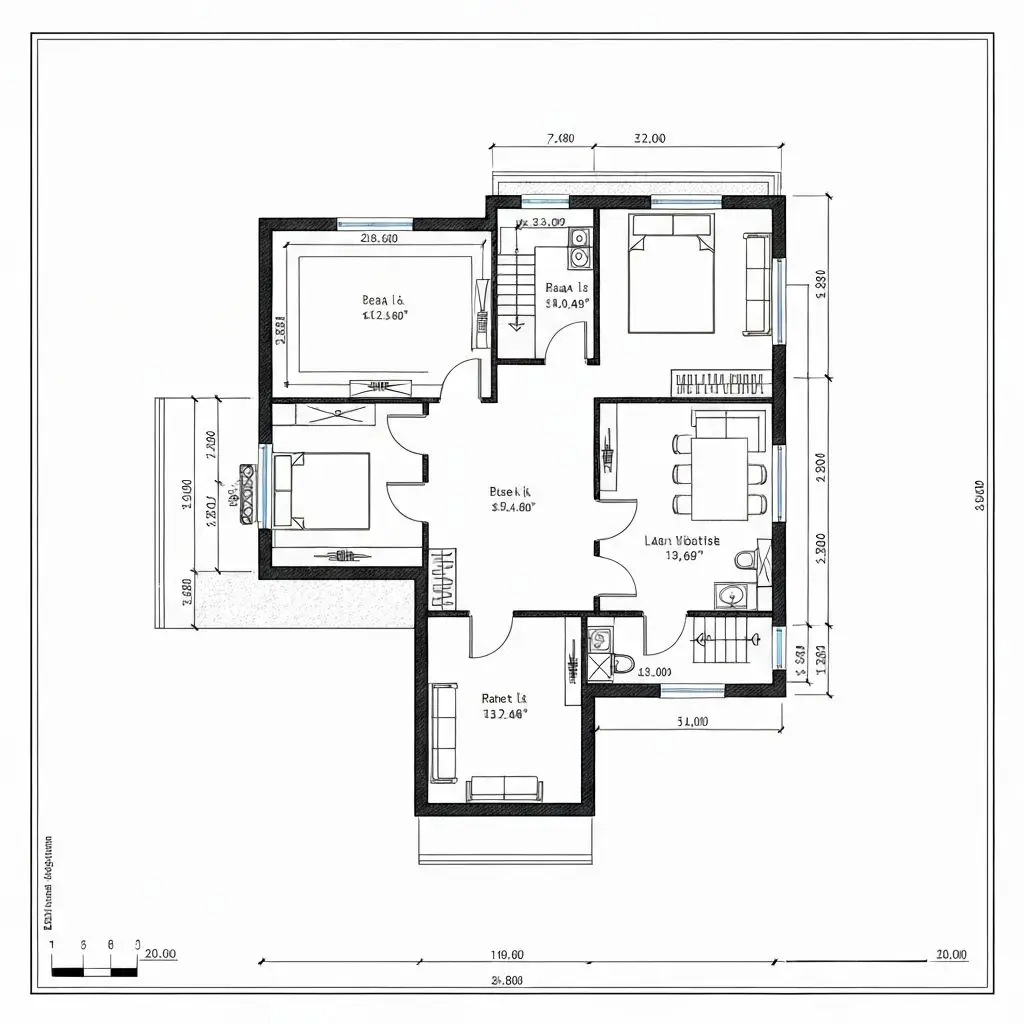

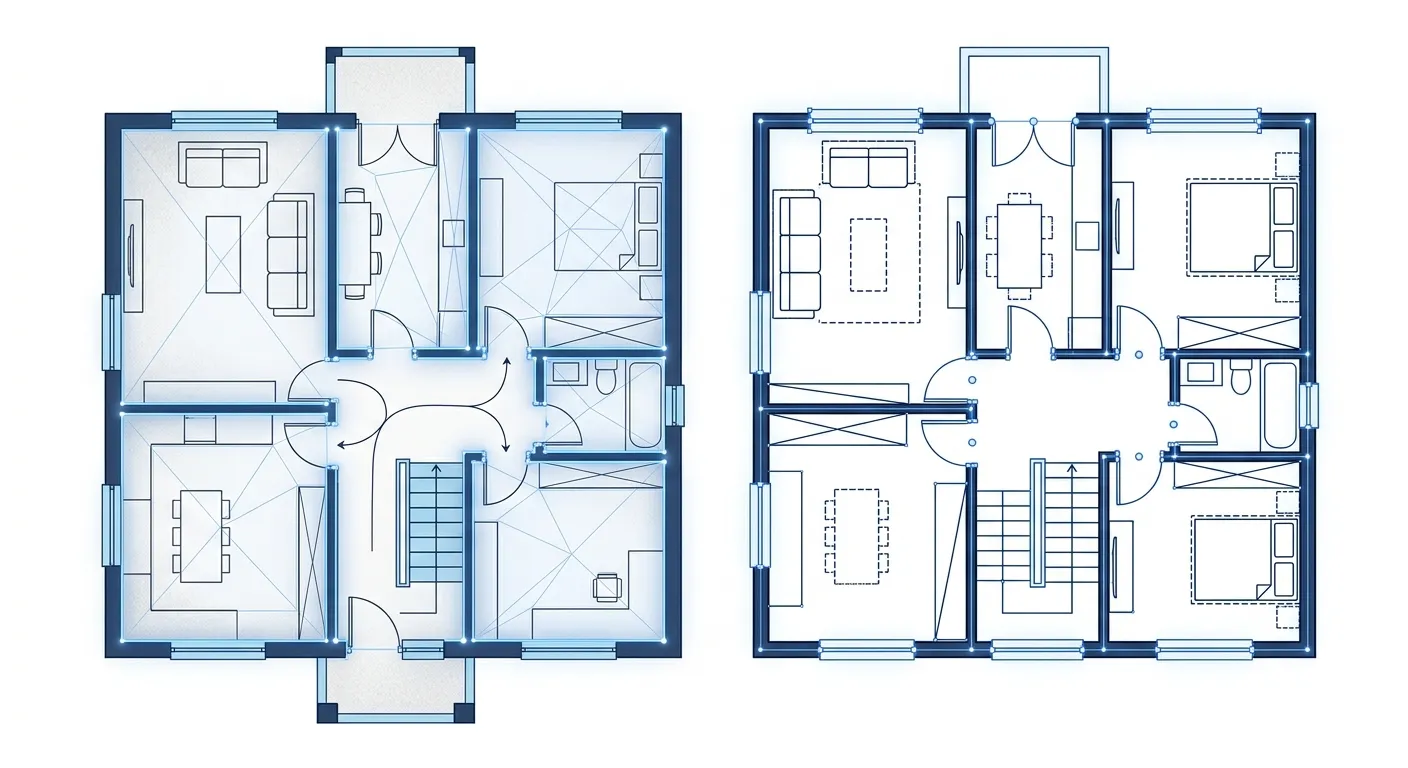

Intelligent Edge Detection

Our AI engine uses advanced computer vision algorithms to analyze your floor plan images and accurately detect walls, doors, windows, and room boundaries. The system intelligently distinguishes between structural elements and decorative details to create cleaner DXF output.

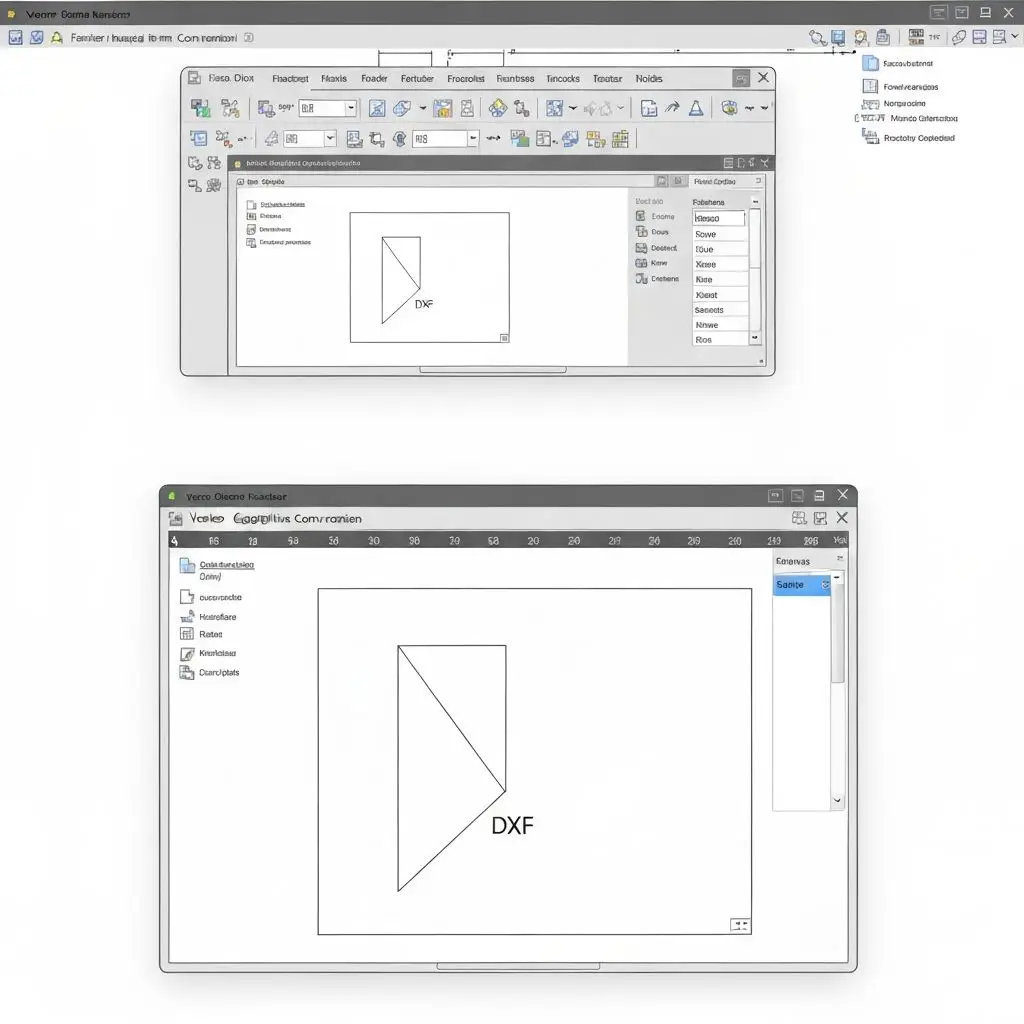

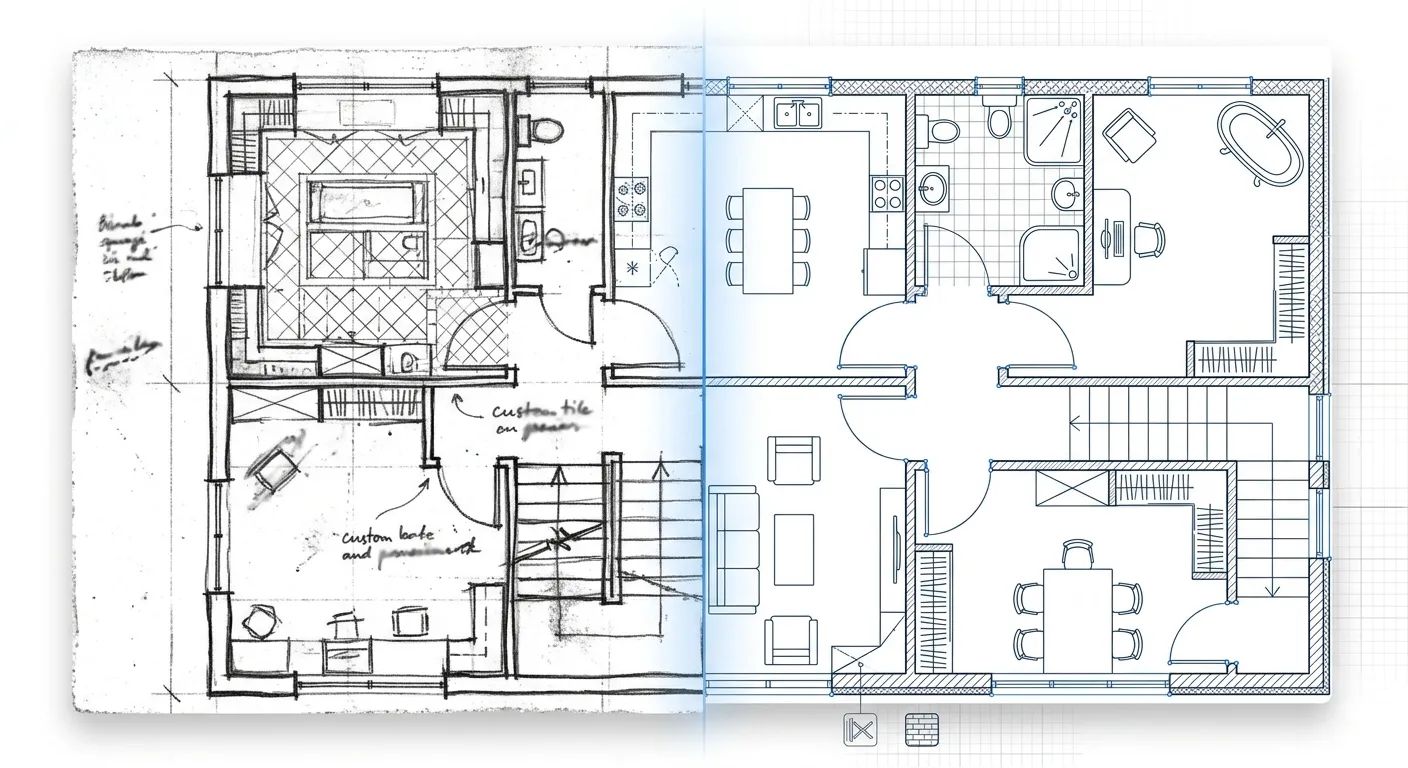

Precise Vector Conversion

Transform raster floor plan images into clean, scalable vector lines. Our conversion engine produces DXF files with precise geometry that maintains accuracy at any scale, making them easier to edit and use in CAD workflows.

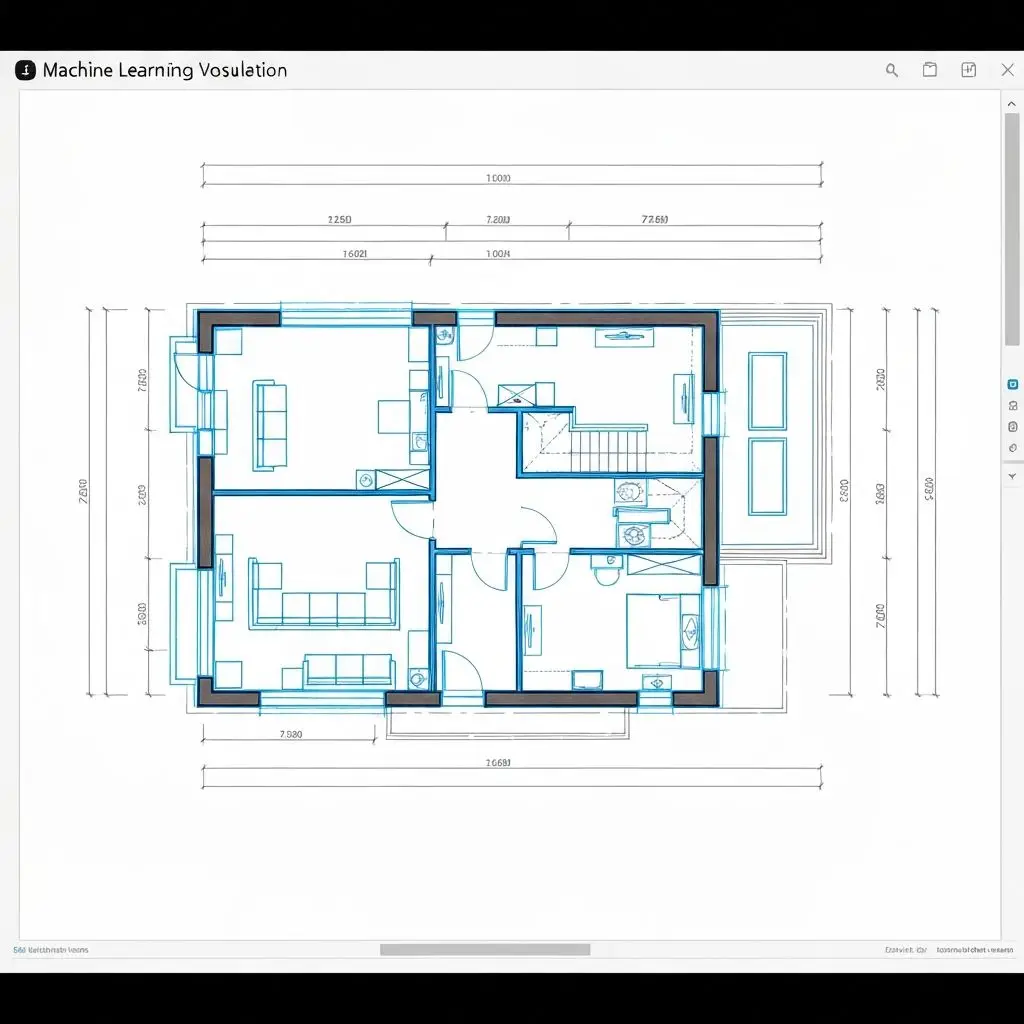

Accurate Proportion Preservation

Preserve the original proportions and spatial relationships of your floor plan during conversion. Walls, rooms, and openings remain aligned with the source drawing, helping you create a more consistent floor plan DXF file for further CAD editing.

How to Convert a Floor Plan Image to DXF

Convert a floor plan image to an editable DXF file in three steps.

Upload Your Floor Plan Image

Upload a JPG, PNG, or BMP floor plan image to start the conversion. You can also draw floor plan online. Images up to 15 MB are supported.

Choose a DXF Conversion Mode

Select the conversion mode that best matches your drawing, then let AI analyze and convert the floor plan into DXF geometry.

Download Your DXF File

Preview the result, download your DXF file, and continue editing it in your preferred CAD software.

Why Choose Our DXF Converter?

Fast conversion, precise vector output, and a simple workflow designed for floor plans, sketches, and architectural drawings.

2–3 min

Typical conversion time

Fast Conversion

Convert floor plan images in just a few minutes with a streamlined online workflow.

High

Vector output quality

High Precision

Generate clean vector geometry with precise lines and accurate architectural details.

15 MB

Maximum image size

File Size Support

Upload floor plan images up to 15 MB for conversion without reducing image quality.

DXF

Export format

CAD-Ready Output

Get standard DXF files ready for editing in CAD and architectural design workflows.

DXF Converter FAQ

Common questions about image-to-DXF conversion, supported formats, accuracy, editing, and data security.

We accept PNG, JPG, JPEG, and BMP images up to 15 MB. Whether you need PNG to DXF or JPG to DXF conversion, the process is the same. For best results, use a high-resolution image with clear walls and minimal noise. Choose Floor Plan (General) for sketches or Architectural Plan (Optimized) for detailed drawings.

Ready to convert your floor plan to DXF?

Upload your floor plan image, preview the result, and convert it to an editable DXF file.

PNG, JPG, JPEG, and BMP
